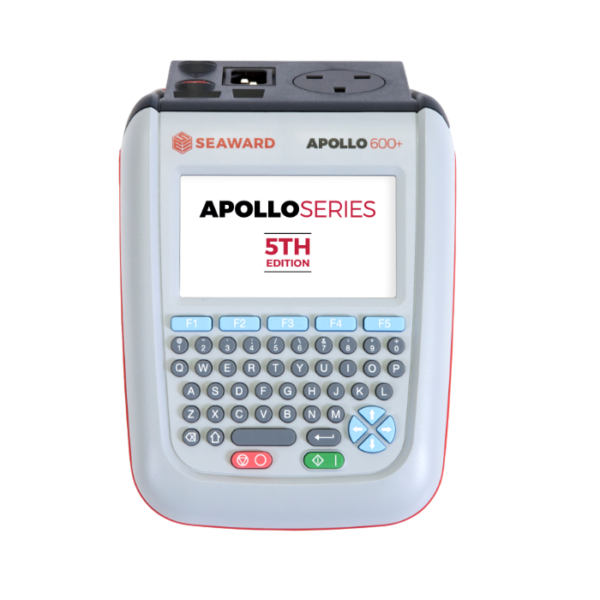

Seaward Apollo 600+ PAT Tester

The Seaward Apollo 600+ is an advanced professional PAT tester with built-in camera, configurable testing sequences, risk assessment tools, and storage for up to 50,000 test records and 2,000 inspection images.

1.000,00 د.إ

Share Product

5th Edition and BS EN50699 Compliant

The Apollo 600+ features a built-in camera for visual test records, a USB memory port for data transfer and a comprehensive range of electrical safety tests with user configurable test sequences and checklists for PAT, PPM and PPE. It has storage for up to 50,000 test records and is compatible with our PATGuard Cloud software for record keeping and reporting.

– Built in camera
– Upload previous asset information for faster re-testing
– Customisable sequences for all PAT, PPM and PPE inspections
– Remotely send data from the field (download and upload)
– Point to point testing for fixed appliances

*Product Update: Apollo testers with firmware version 5 and above are no longer compatible with the standard Elite model printer. Only the Elite 2 and Test n Tag Pro printers are supported. Please ensure you have the appropriate printer to avoid any inconvenience.

The Apollo 600+ features a built-in camera for visual test records, a USB memory port for data transfer and a comprehensive range of electrical safety tests with user configurable test sequences and checklists for PAT, PPM and PPE. It has storage for up to 50,000 test records and is compatible with our PATGuard Cloud software for record keeping and reporting.

– Built in camera
– Upload previous asset information for faster re-testing
– Customisable sequences for all PAT, PPM and PPE inspections
– Remotely send data from the field (download and upload)
– Point to point testing for fixed appliances

*Product Update: Apollo testers with firmware version 5 and above are no longer compatible with the standard Elite model printer. Only the Elite 2 and Test n Tag Pro printers are supported. Please ensure you have the appropriate printer to avoid any inconvenience.

More about the Apollo 600+

Apollo 600+ revolutionises safety management, with a built-in risk assessment tool for any workplace hazard and a variety of testing and inspection reports including portable appliance testing, fire detection and emergency lighting; Apollo 600+ offers an all-in-one solution to managing a risk-based approach to health and safety in any workplace, reducing the burden and ensuring compliance.

With a new processor, testing is now faster and more efficient than ever before, and our new Wifi Hotspot feature means it has never been easier to get results back to your office via your mobile device.

For complete traceability of results, including proof of visual inspection, the Apollo 600+ features an on-board camera, allowing photographs to be stored alongside risk assessments and other test and inspection data.

The Apollo 600+ has storage for up to 50,000 test records and 2,000 visual inspection images enabling you to store more test result data – this is great for high volume testing, or if you are retesting a large number of appliances on a regular basis.

It has user configurable inspection and test sequences, which can be created or adapted for use with any PPM or PPE inspections. Typical examples include ladder inspections, legionella monitoring and emergency lighting battery checks. This function makes the Apollo 600+ the complete health and safety compliance and reporting tool.

Feature Details
On-board Camera Records visual inspections
Data Storage Up to 50,000 test records
Image Storage Up to 2,000 visual inspection images
Test Sequences User-configurable PAT, PPM & PPE inspection sequences
Risk Assessment Built-in risk assessment tool
Point-to-Point Testing Earth continuity & insulation resistance
Data Transfer USB cable, USB flash drive & Wi-Fi hotspot
Barcode / QR Scanner Connectivity Yes
Printer Compatibility Test n Tag Pro & Test n Tag Elite 2
PATGuard Cloud Compatible Yes
Specification Value
Earth Continuity Test Current ±200mA DC
Earth Continuity Range 0.05Ω–19.99Ω
Insulation Test Voltage 500V / 250V DC @ 1mA nominal
Insulation Resistance Range 0.10MΩ–19.99MΩ
IEC Lead Test Voltage 5V AC nominal
Protective Conductor Current Range 0.25mA–19.99mA
Touch Current Range 0.10mA–5mA
Maximum Load Current 16A
Load Current Range 0.50A–16.0A
Load Test Duration Programmable up to 240 seconds
Alternative Leakage Current Range 0.20mA–19.99mA
RCD Test Current 30mA / 150mA rms sinusoidal
RCD Display Range 0–2000ms
Power Socket Test Voltage Range 207–253V AC
Memory Up to 50,000 records & 2,000 photos
Power Source Mains or rechargeable battery pack
Dimensions 230 × 150 × 100mm
Weight 1.5kg

Reviews

There are no reviews yet.

Be the first to review “Seaward Apollo 600+ PAT Tester”

Your email address will not be published. Required fields are marked *

YOU MAY ALSO LIKE

Similar Products

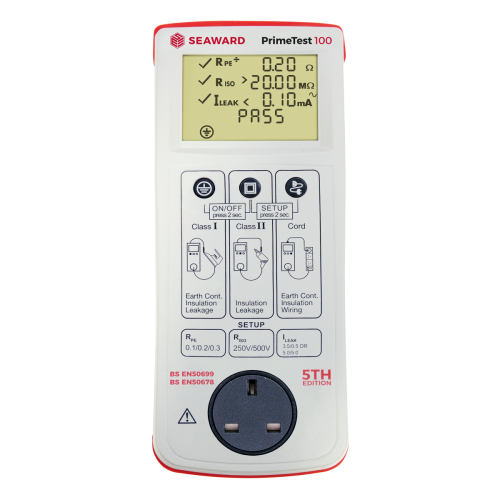

New Seaward PrimeTest 100 PAT Tester
Seaward PrimeTest 100 PAT Tester
1.000,00 د.إ

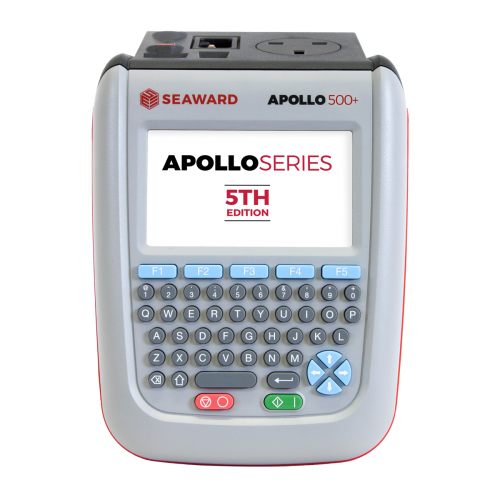

New Seaward Apollo 500+ PAT Tester
Seaward Apollo 500+ PAT Tester
1.000,00 د.إ

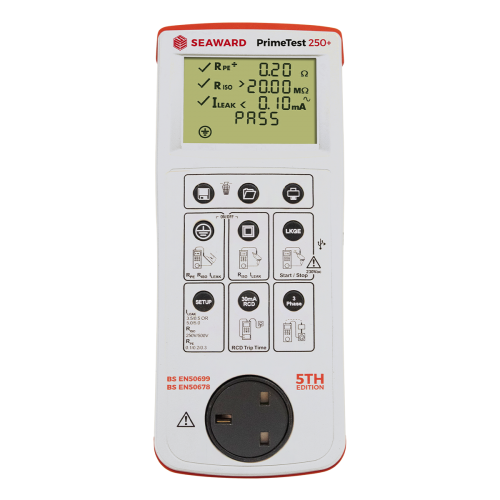

New Seaward PrimeTest 250+ PAT Tester
Seaward PrimeTest 250+ PAT Tester
1.000,00 د.إ

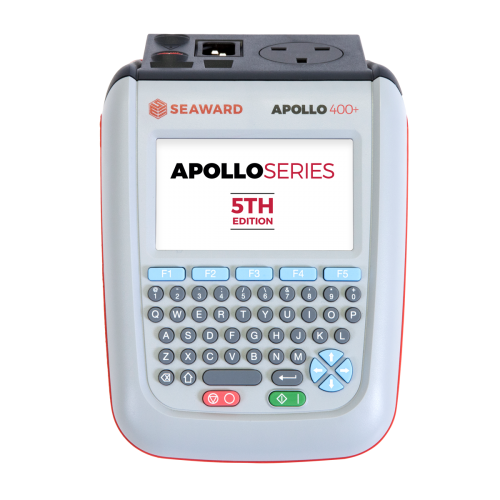

New Seaward Apollo 400+ PAT Tester
Seaward Apollo 400+ PAT Tester
1.000,00 د.إ

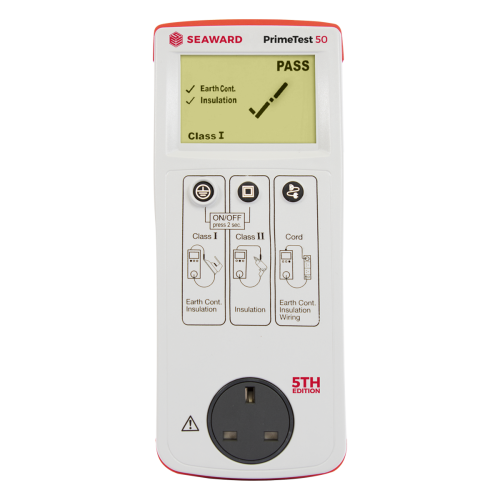

New Seaward PrimeTest 50 PAT Tester
