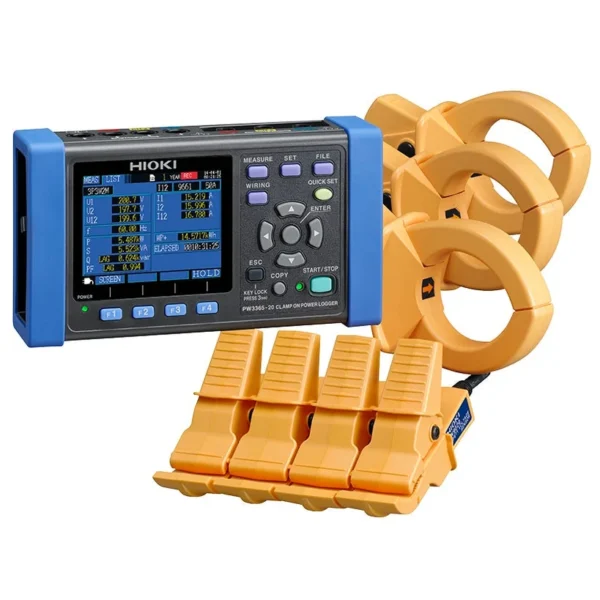

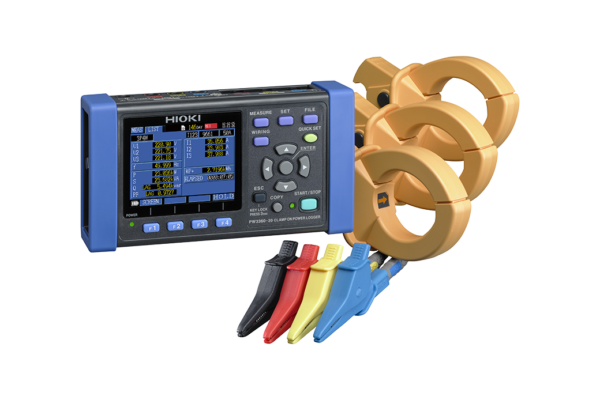

HIOKI Clamp On Power Meters are multi-channel power measuring devices utilizing clamp sensor input to accurately and safely measure power on single-phase to three-phase lines. The PW3365-20 takes safety and convenience one step further by being the world’s first non-metallic contact power meter that utilizes completely covered voltage clips that can be attached to any part of a cable or busbar. Customers can now monitor power demand and other power parameters to aid in energy audits and validate energy-saving measures without risk of short-circuit accidents, power interruptions, or bodily injury due to electrocutions. Clamp On Power Logger PW3365-20 by itself does not support current and power measurements. Current and power measurements require clamp-on sensors, sold separately. Use only HIOKI SD cards guaranteed to work for saving measurement data (options, sold separately).
Key Features
● Eliminate the risk of short-circuits and electrical accidents
● The world’s first instrument to offer no-metal-contact power measurement
● Measure in potentially hazardous locations
● Free yourself from the risk of short-circuits by measuring right on the cable sheath without ever needing to touch metal to energize parts
Measurement Principles of the World’s First Non-contact Voltage Sensor
The Voltage Sensor PW9020 used by the PW3365-20 is able to perform non-contact measurement by means of the principle described below. Inside the PW9020 is a metal plate that serves as an electrode, and when this electrode detects a voltage (potential difference) in the object being measured, a minuscule current flows to it. By generating a voltage such that this current is eliminated, the sensor can accurately measure the voltage in the conductor.
SAFETY VOLTAGE SENSOR PW9020 Specifications
| Measurement line & number of circuits | 50/60 Hz, Single phase 2 wires (1/2/3 circuits), Single phase 3 wires (1 circuit), Three phases 3 wires (1 circuit), Three phases 4 wires (1 circuit), Current only: 1 to 3 channels | |||||
|---|---|---|---|---|---|---|
| Measurement items | Voltage RMS, current RMS, voltage fundamental wave value, current fundamental wave value, voltage fundamental wave phase angle, current fundamental wave phase angle, frequency (U1), voltage waveform peak (absolute value), current waveform peak (absolute value), active power, reactive power, apparent power, power factor (with lag/lead display) or displacement power factor (with lag/lead display), active energy (consumption, regeneration), reactive energy (lag, lead), energy cost display, active power demand quantity (consumption, regeneration), reactive power demand quantity (lag, lead), active power demand value (consumption, regeneration), reactive power demand value (lag, lead), power factor demand | |||||
| Voltage ranges | 400 V AC (Effective measurement range: 90.0 V to 520.0 V) | |||||
| Harmonic | Harmonic voltage, harmonic current, voltage total harmonic distortion (THD-F or THD-R), current total harmonic distortion (THD-F or TDH-R), up to 13th order | |||||
| Current ranges | 500.00 mA to 5.0000 kA AC (depends on current sensor in use), 50.000 mA to 5.0000 A AC (Leak clamp on sensor only) | |||||
| Power ranges | 200.00 W to 6.0000 MW (depends on voltage/current combination and measured line type) | |||||
| Basic accuracy | Voltage : ±1.5% rdg. ±0.2% f.s(combined accuracy with PW3365-20 + PW9020) Current : ±0.3% rdg. ±0.1% f.s. + clamp sensor accuracy Active power : ±2.0% rdg. ±0.3% f.s. + clamp sensor accuracy (at power factor = 1) | |||||
| Display update rate | 0.5 sec (except when accessing SD card or internal memory, or during LAN/USB communication) | |||||
| Save destination | SD/SDHC Memory card, or internal memory at real time | |||||
| Data save interval | 1 sec to 30 sec, 1 minute to 60 minutes, 14 selections | |||||
| Save items | Measurement value save: Average only / Average, Maximum, Minimum value Screen copy: BMP form (saved every 5 min. at minimum interval time) Waveform save: Binary waveform data | |||||
| Interfaces | SD/SDHC memory card, LAN 100BASE-TX: HTTP server function, remote settings via communication program, data download, USB 2.0: When connected to a PC, the SD Card and internal memory are recognized as removable storage devices, remote settings via communication program, data download | |||||
| Functions | Connection check, Quick Set navigation guide, clock | |||||
| Power supply | AC adapter Z1008: (100 to 240 V AC, 50 Hz/60 Hz), 45 VA (including AC adapter) Battery pack 9459: (Max. rated power 5 VA, charging time 6 hr 10 m), 3 hours of continuous use (with backlight off) | |||||
| Dimensions and mass | 180 mm (7.09 in.)W × 100 mm (3.94 in.)H × 48 mm (1.89 in.)D, 540 g (19 oz.) without PW9002 180 mm (7.09 in.)W × 100 mm (3.94 in.)H × 68 mm (2.68 in.)D, 820 g (28.9 oz.) with PW9002 | |||||
| Included accessories | Safety Voltage Sensor PW9020 ×1 set, AC adapter Z1008 ×1, USB cable L1003 ×1, Instruction manual ×1, Measurement guide ×1, Color clip (red, yellow, blue and white each 4), Spiral tubes in black (cord bundling for current sensors and voltage sensors) ×10 | |||||
| Compatible conductor types | Insulated wires* In door PVC or metal parts *Shielded wires cannot be measured. The product may not be able to accurately measure multi-core cables or cables that have thick insulation. |
|---|---|
| Compatible conductor diameters | Finished outer diameter φ6mm to φ30mm |
| Effective measurement range | 90 V rms to 520 V rms |
| Cord length | 3m (9.84 ft) |
