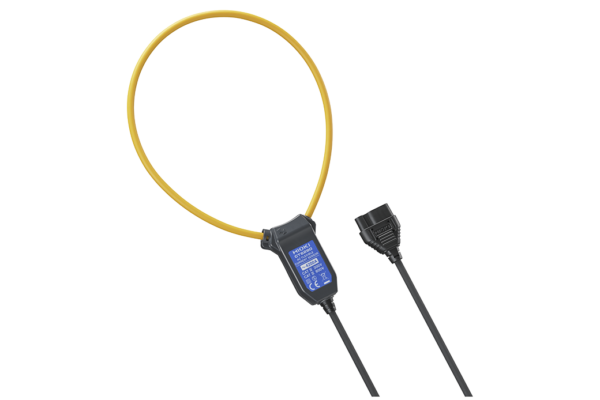

Hioki CT6280 AC Flexible Current Sensor is a flexible large diameter and large current measurement in combination with an AC clamp meter.
Hioki CT6280 AC Flexible Current Sensor is a flexible large diameter and large current measurement in combination with an AC clamp meter, and it has the following specifications.
● Maximum Input Current: 4200A AC, Continuous (50Hz to 60Hz)
● Core Jaw Diameter: φ130mm (5.12-inch) (Cross-section diameter of sensor cable: φ5mm (0.20-inch); Sensor-tip cap diameter: φ7mm (0.28-inch))
● Dimensions and Mass: 42mm (1.65-inch) W x 65mm (2.56-inch) H x 18mm (0.71-inch) D (excluding the flexible loop and output cable), 71g (2.5 oz)
● Cable Length: 800mm (31.5-inch)
Key Features
- Large-diameter loop is ideal for measuring large wires and pairs of wires.
- In small spaces
- Freely bendable
| Maximum input current | 4200 A AC, continuous (50 Hz to 60 Hz) | |||||
|---|---|---|---|---|---|---|
| Core jaw dia. | φ 130 mm (5.12 in) (Cross-section diameter of sensor cable: φ 5 mm (0.20 in); Sensor-tip cap diameter: φ 7 mm (0.28 in)) | |||||
| Dimensions and mass | 42 mm (1.65 in) W × 65 mm (2.56 in) H × 18 mm (0.71 in) D (excluding the flexible loop and output cable), 71 g (2.5 oz) | |||||
| Cable length | 800 mm (31.5 in) | |||||
| Included accessories | Carrying Case C0205 ×1 | |||||
